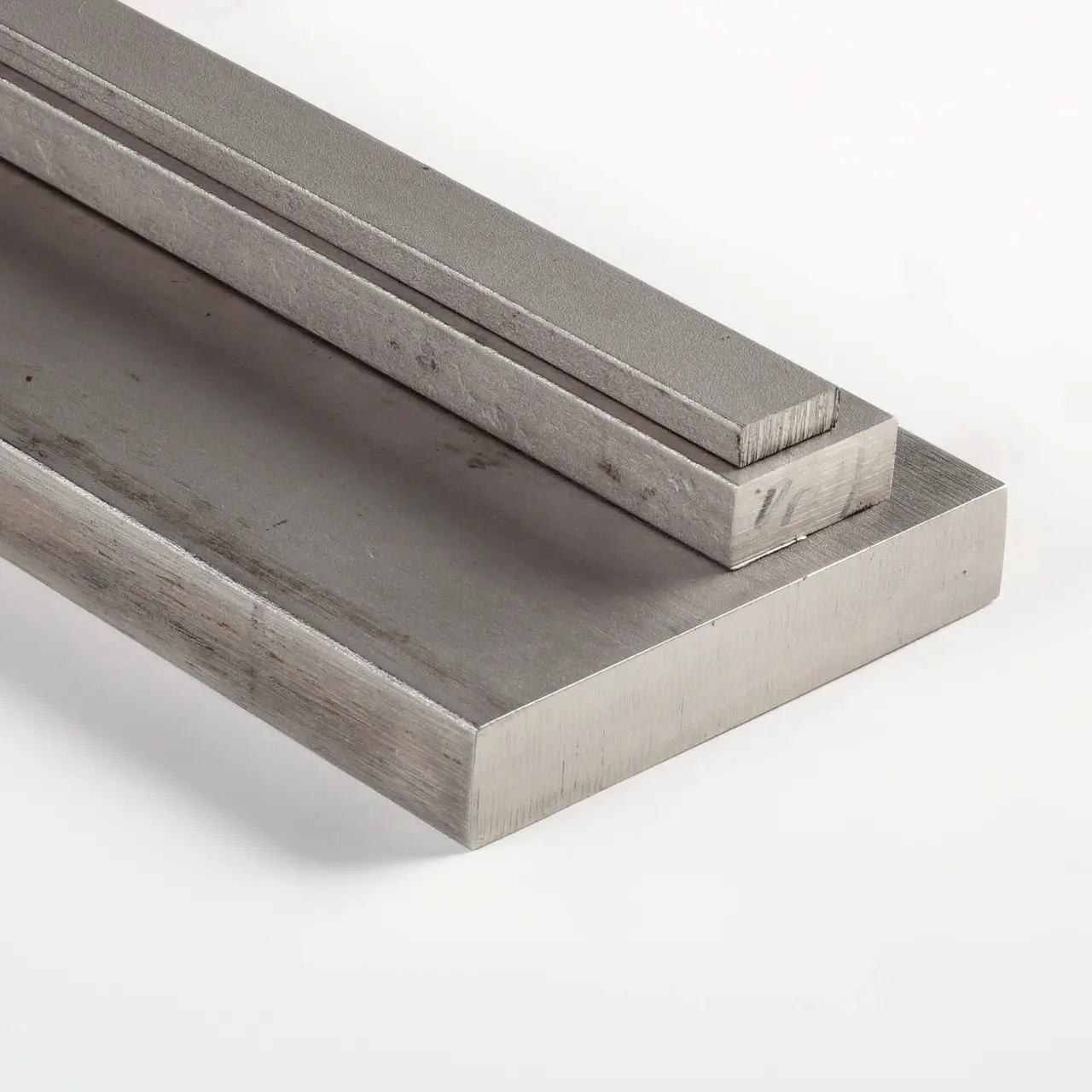

316 stainless steel flat bar is a solid stainless steel section with a rectangular cross-section. Made from high-grade 316 stainless steel, it is renowned for its exceptional corrosion resistance, particularly in chloride-rich environments. Its unique flat profile offers significant advantages in structural engineering, architectural design, and diverse manufacturing applications.
| Category | Details |
|---|---|
| Standard | ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311, DIN 1654-5, DIN 17440, KS D3706, GB/T 1220 |
| Material Grades | EN1.4307, EN1.4845, EN1.4547, EN1.4404, EN1.4919, EN1.4571, EN1.4438, EN1.4541, EN1.4878, EN1.4550, EN1.3974, EN1.4511, EN1.4006 |
| Surface Finish | Pickled, Peeled, Black, Sand Blast, Bright, etc. |
| Technology | Hot Rolled, Cold Drawn, Cutting |
| Specifications | 20*3mm - 100*10mm or as per custom requirements |
| Tolerance | According to standards or as required |
| Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
|---|---|---|---|
| 12 x 3 | 0.28 | 50 x 6 | 2.37 |
| 20 x 3 | 0.47 | 60 x 6 | 2.84 |
| 25 x 3 | 0.59 | 75 x 6 | 3.56 |
| 40 x 3 | 0.95 | 100 x 6 | 4.74 |
| 12 x 5 | 0.47 | 25 x 10 | 1.98 |
| 50 x 5 | 1.98 | 50 x 10 | 3.95 |
| 100 x 5 | 3.95 | 100 x 12 | 9.48 |
