Hastelloy B2 is a wrought nickel-molybdenum alloy that can be used in the ‘as welded’ condition. This alloy has excellent resistance to all temperatures and concentrations of hydrochloric acid. Additionally, it has good stress corrosion cracking and pitting resistance as well. However, due to the presence of high molybdenum content, this alloy is expensive.

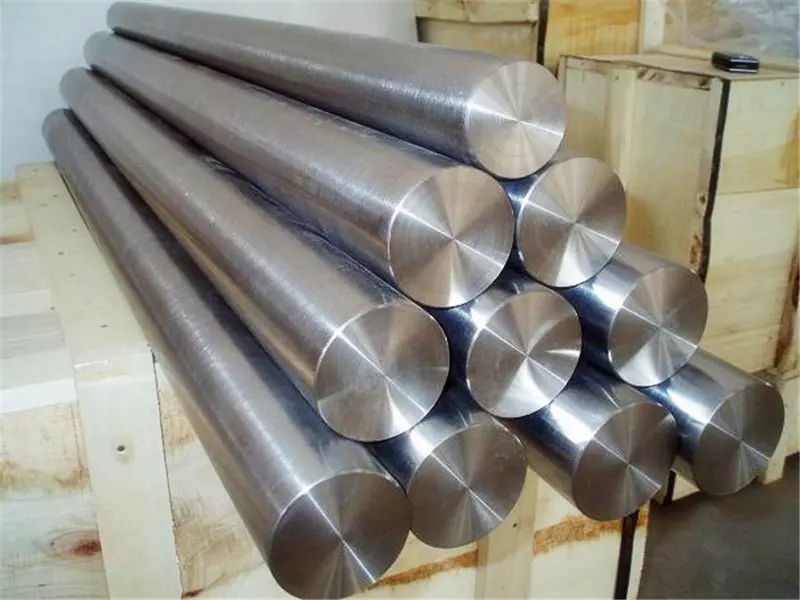

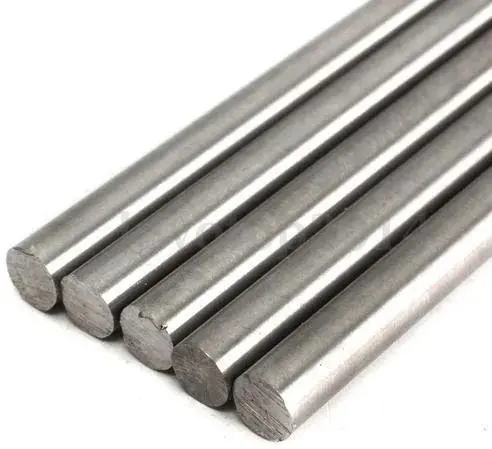

Hastelloy B2 bars are high-performance nickel-molybdenum alloy bars known for their exceptional resistance to corrosion, especially in reducing environments. They offer superior resistance to hydrochloric acid, sulfuric acid, and other aggressive chemicals. These bars are widely used in chemical processing, pharmaceutical, and oil and gas industries for their reliability in harsh conditions. Hastelloy B2 bars exhibit excellent mechanical properties and are available in various sizes to suit diverse industrial applications.
Hastelloy B2 bars boast excellent machinability characteristics when compared with other nickel-based alloys, enabling precise shaping and customization, which facilitates use in manufacturing processes across industries that demand components with specific dimensions requirements.
Key Applications: Reactors, heat exchangers, valves and pumps exposed to highly corrosive environments. They are indispensable in pharmaceutical manufacturing for chemical synthesis and purification processes, as well as in oil & gas for downhole equipment.
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Hastelloy B2 | 2.4617 | N10665 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 9.2g/cm3 | 1370℃ (2550°℉) | Psi-1,15,000, MPa-760 | Psi- 52,000, MPa-350 | 40% |
| Grade | Ni | Mo | Cr | Fe | Mn | C | P | S | Si |
|---|---|---|---|---|---|---|---|---|---|
| Hastelloy B2 | Bal | 26-30 | 1.0 | - | 0.1 | 0.02 | 0.04 | 0.03 | 0.1 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Polish | 3.00 - 75.00 | 1/8 - 3.00 | h8-h9-h10-h11 |
| Cold Drawn and Ground | 10.00 - 75.00 | 5/6 - 2.50 | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 - 150.00 | 1.50 - 6.00 | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 - 50.00 | 3/4 - 2.00 | h9-h10-h11 |
| Square bar size | 4 to 100mm |
|---|---|
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Hex Bar size | 2-100mm A/F |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Flat bar size | Thickness: 2 -100mm; Width: 10 to 500mm |
| Surface Finish | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Forms Available | Round, Rod, T-Bar, Channel, Precision Ground, Flat, Square, Blocks, Rings, Hollow, Hex, Billet, Ingot |
Hastelloy B2 is primarily a nickel-molybdenum alloy, with molybdenum content ranging between 26-30% and Nickel as the balance element.
It offers exceptional resistance to hydrochloric acid at all temperatures and concentrations, as well as superior protection against sulfuric acid and reducing environments.
Yes, it is designed to be used in the ‘as welded’ condition while maintaining its corrosion-resistant properties.
It features a tensile strength of approximately 760 MPa (115,000 Psi) and a yield strength of 350 MPa (52,000 Psi), with a 40% elongation rate.
Key industries include chemical processing, pharmaceuticals, oil & gas production, and pulp & paper manufacturing.
Available finishes include bright, hot rolled pickled, cold drawn, sand blasting finished, polished, hairline, and centerless ground.
