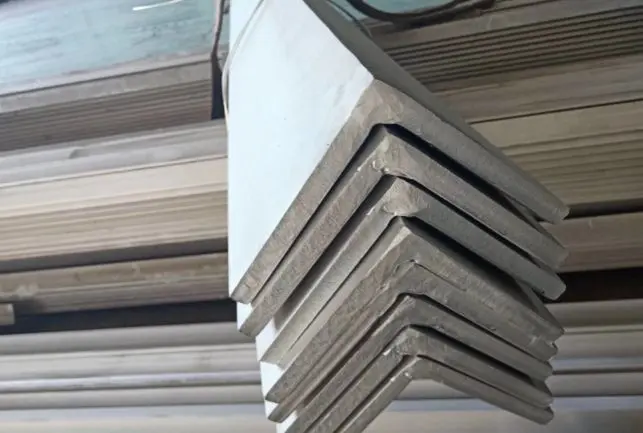

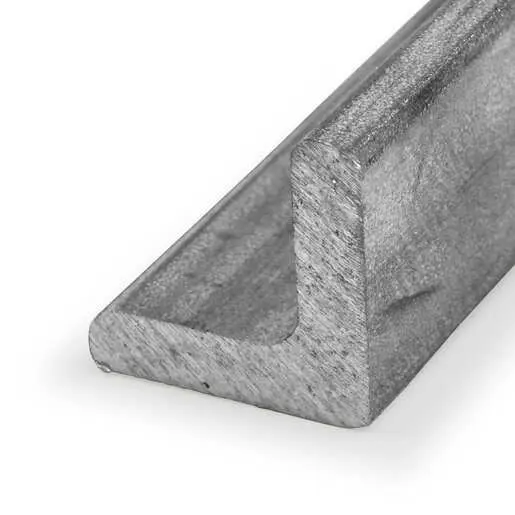

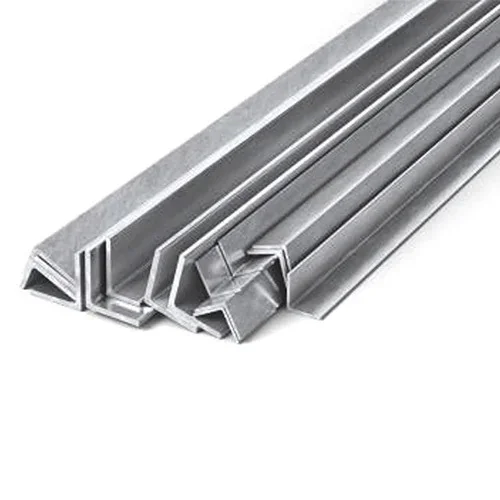

Stainless steel angle steel generally refers to long strips of steel with stainless steel material and two sides at right angles. According to the length of the strip, it is divided into equilateral stainless steel angle steel and unequal stainless steel angle steel.
Key Characteristics:
Stainless steel angle steel is widely used in various building structures and engineering structures, from civil beams, warehouse shelves, and equipment rack bases to industrial bridges, transmission towers, and military ships. It serves as essential load-bearing components or connectors according to structural needs.
| Standard | JIS, AISI, ASTM, GB, DIN, EN | |||
| Property | Stainless steel equal angle | |||
| Specifications | 20# ~ 100# | |||
| 20×20×(3,4,5) | 30×30×(3,4,5) | 40×40×(3,4,5,6) | 50×50×(3,4,5,6) | |
| 60×60×(4,5,6,8) | 63×63×(4,5,6,8) | 65×65×(4,5,6,8) | 70×70×(5,6,8,10) | |
| 75×75×(5,6,8,10) | 80×80×(5,6,8,10) | 100×100×(8,10,12) | - | |
| Length | Requirement of customer (Normal: 3-6m) | |||
| Manufacturing | Hot Rolled | |||
| Surface | Pickled, Sandblasting, Polished | |||
| Main Grades | 201, 301, 302, 303, 304, 304L, 316, 316L, 310S, 430, etc. | |||
| Grade | C (max) | Mn (max) | Si (max) | P (max) | S (max) | Cr | Ni |
|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 18 – 20 | 8 – 11 |
| SS 304L | 0.035 | 2.0 | 1.0 | 0.045 | 0.030 | 18 – 20 | 8 – 13 |
| Density | Melting Point | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|---|
| 8.0 g/cm³ | 1400 °C | 515 MPa | 205 MPa | 35% |
| 25*25*3 | 75*75*6 | 125*125*12 | 32*20*4 | 75*50*8 | 110*70*8 |
| 25*25*4 | 75*75*7 | 125*125*14 | 40*25*3 | 75*50*10 | 110*70*10 |
| 30*30*3 | 75*75*8 | 140*140*10 | 40*25*4 | 80*50*5 | 125*80*7 |
| 30*30*4 | 75*75*10 | 140*140*12 | 45*28*3 | 80*50*6 | 125*80*8 |
| 40*40*3 | 80*80*6 | 140*104*14 | 45*28*4 | 80*50*7 | 125*80*10 |
| 40*40*5 | 80*80*10 | 160*160*14 | 50*32*4 | 90*50*5 | 140*90*10 |
| 50*50*6 | 90*90*12 | 180*180*12 | 56*36*5 | 90*50*8 | 140*90*14 |
| 63*63*7 | 110*110*8 | 200*200*16 | 70*45*4 | 100*80*6 | 180*110*16 |
