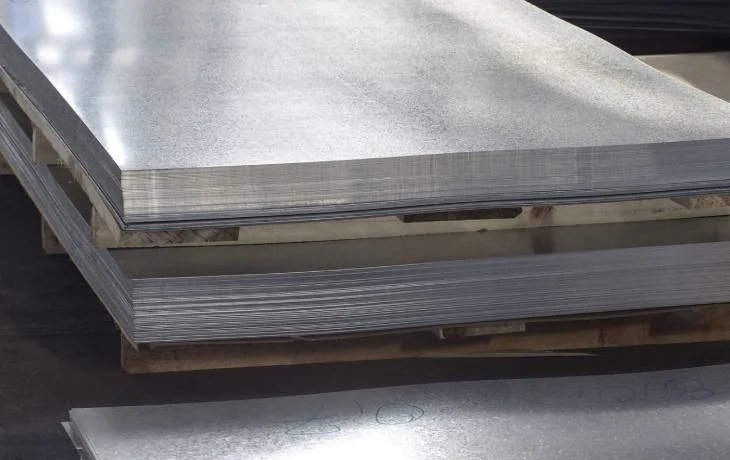

Hastelloy C276 ASTM Standard B575 Plate is a nickel-molybdenum-chromium superalloy with an enhancement of tungsten made to have superb deterioration resistance in a wide variety of extreme atmospheres. Although there are a number of variations of the nickel alloy, Hastelloy C276 Plate is without a doubt the most commonly used.
Hastelloy C276 Plate shows superb deterioration resistance in a range of extreme settings and also media. Like lots of other nickel alloys, it is pliable, easily developed and also welded.
ASTM B575 UNS N10276 Hastelloy C276 Sheet is frequently utilized in several industries, consisting of petrochemical, chemical oil and gas, power generation, pharmaceutical, pulp and paper manufacturing and drainage treatment. Hastelloy C276 Coil has superior resistance to matching, tension deterioration breaking as well as oxidizing environments.
ASME SB 575 UNS N10276 material likewise displays resistance to deterioration by salt water in crevice conditions, which can generate hostile attack in other commonly utilized materials. UNS N10276 Plate is usually remedy heat-treated at 2050 Degree F and fast quenched.
The only difference in between Alloy C276 sheet as well as plate steel is the gauge (thickness) of the metal. ASTM B575 UNS N10276 Sheet as well as Hastelloy Alloy C276 Plate are words utilized to explain the category of metal depending upon its thickness. While sheet steel is less than 3 mm thick, plate steel is certainly thicker than 3 mm.
Features & Characteristics
✓Excellent corrosion resistance in reducing environments.
✓Exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides.
✓High nickel and molybdenum contents providing good corrosion resistance in reducing environments.
✓Low carbon content which minimizes grain-boundary carbide precipitation during welding to maintain resistance to corrosion in heat-affected zones.
✓Resistance to localized corrosion such as pitting and stress-corrosion cracking.
✓One of few materials to withstand the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide.
Mechanical Properties
Grade
Tensile (ksi)
2% Yield (ksi)
Elongation %
Hardness (HRb)
C22
115
55
60
59
C276
110
52.6
62
/
Chemical Composition
Grade
C
Mn
Si
S
Co
Ni
Cr
Fe
Mo
P
Hastelloy C22
0.010 max
0.50 max
0.08 max
0.02 max
2.50 max
50.015 max
20.00-22.50
2.00-6.00
12.50-14.50
0.02 max
Hastelloy C276
0.01 max
1.0 max
0.08 max
2.50 max
Balance
14.5-16.5
4-7
15-17
0.04 max
0.04 max
Weight Per Square Meter
Size (mm)
Weight per Sheet (Kg)
Size (mm)
Weight per Sheet (Kg)
2000x1000x0.7
11.5
2500x1250x1.5
38.4
2500x1250x0.7
17.9
3000x1500x1.5
55.3
2000x1000x0.9
14.7
2000x1000x2.0
32.7
2500x1250x0.9
23.0
2500x1250x2.0
51.2
2000x1000x1.0
16.4
3000x1500x2.0
73.7
2500x1250x1.0
25.6
2000x1000x2.5
40.9
3000x1500x1.0
36.8
2500x1250x2.5
63.9
2000x1000x1.2
19.6
3000x1500x2.5
92.1
2500x1250x1.2
30.7
2000x1000x3.0
49.6
What is the main application of Hastelloy C276 Plate?
Hastelloy C276 is widely used in the petrochemical, chemical processing, power generation, and pharmaceutical industries due to its excellent resistance to aggressive chemicals and extreme environments.
How do ASTM B575 standards define Hastelloy C276?
ASTM B575 is the standard specification for low-carbon nickel-chromium-molybdenum alloy plate, sheet, and strip, ensuring consistent quality and performance for materials like UNS N10276.
What makes Hastelloy C276 resistant to corrosion during welding?
The alloy's very low carbon content minimizes grain-boundary carbide precipitation during the welding process, which helps maintain its superior corrosion resistance in the heat-affected zones of welded joints.
Can Hastelloy C276 withstand wet chlorine gas?
Yes, it is one of the few materials that can effectively withstand the highly corrosive effects of wet chlorine gas, as well as hypochlorite and chlorine dioxide solutions.
What is the difference between C276 sheet and plate?
The primary difference is the thickness: "sheet" typically refers to metal less than 3 mm thick, while "plate" refers to metal thicker than 3 mm.
Does this alloy perform well in seawater?
Yes, UNS N10276 exhibits exceptional resistance to corrosion by salt water, especially in crevice conditions where other materials often fail.
