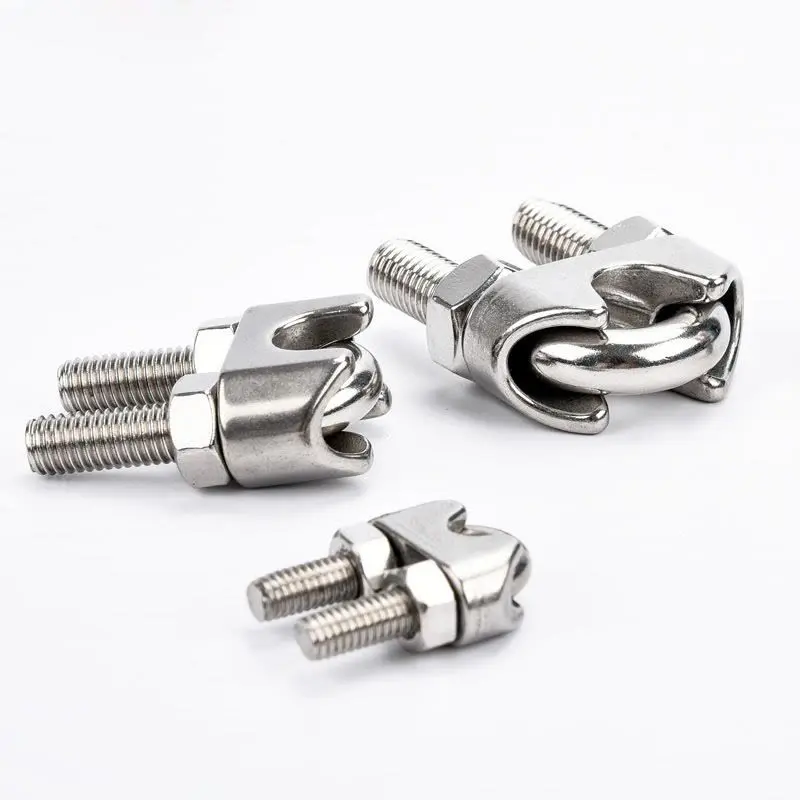

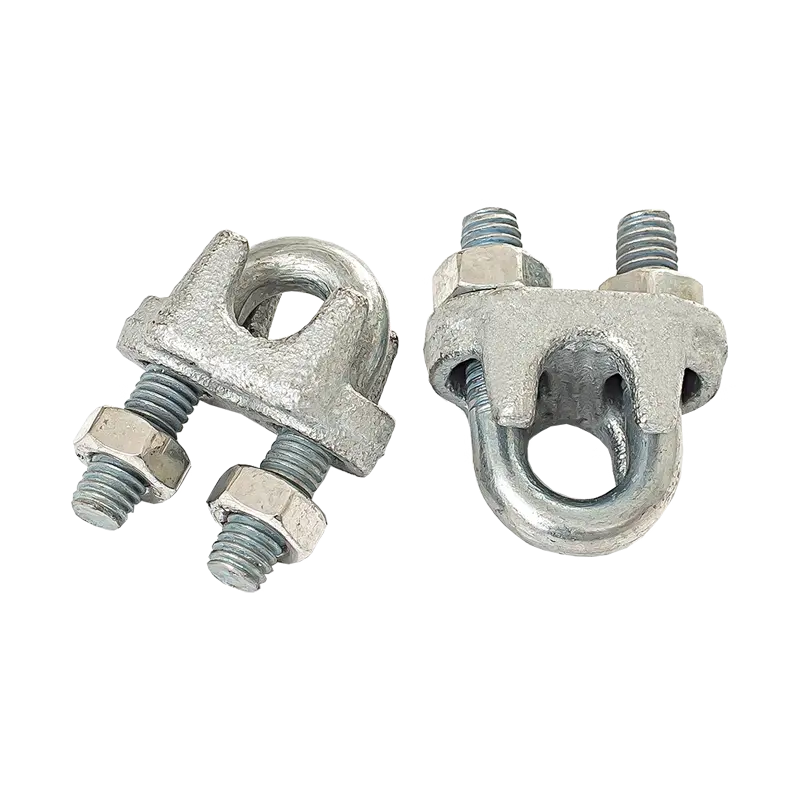

A wire rope chuck, also known as a wire rope clamp, is primarily used for temporary wire rope connections, securing the rear hand rope when threading the wire rope through a pulley block, and securing the head of the guy rope on a jib. It is compatible with phosphate-coated, galvanized, stainless steel, and smooth-surfaced wire ropes, making it a widely used component in lifting operations.
Connection Method
Chucks are essential for creating secure wire rope clamp connections. There are three primary types utilized in the industry:

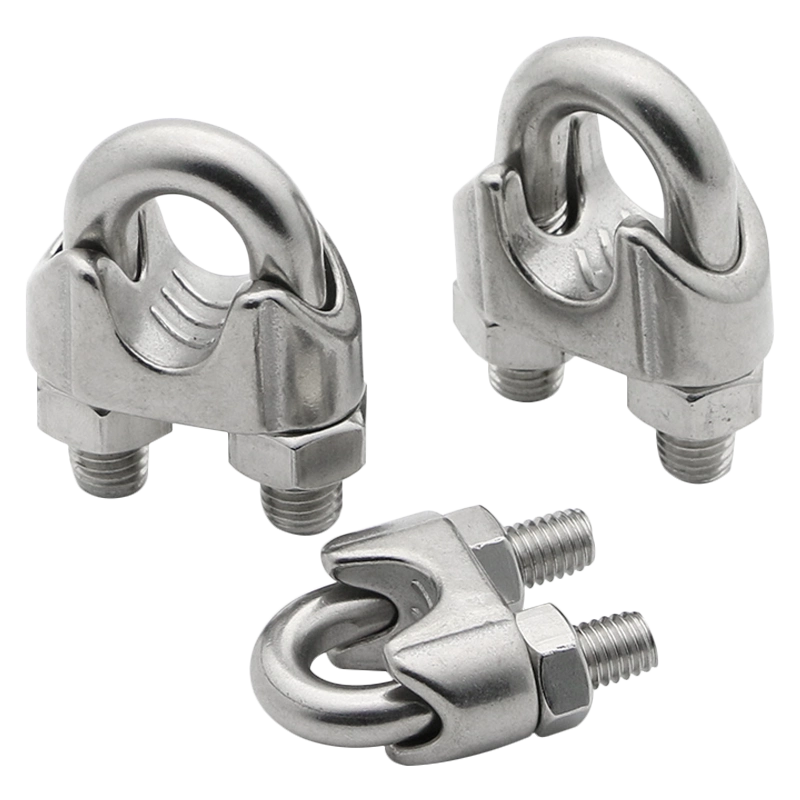

Saddle-type (Strongest)
Pressure-plate Type
Fist-grip Type
Note: The saddle-type offers the maximum connection strength and is the most widely used. The fist-grip type is generally reserved for less critical applications due to its lack of a base and potential for rope damage.
Usage Guidelines & Best Practices
✔️

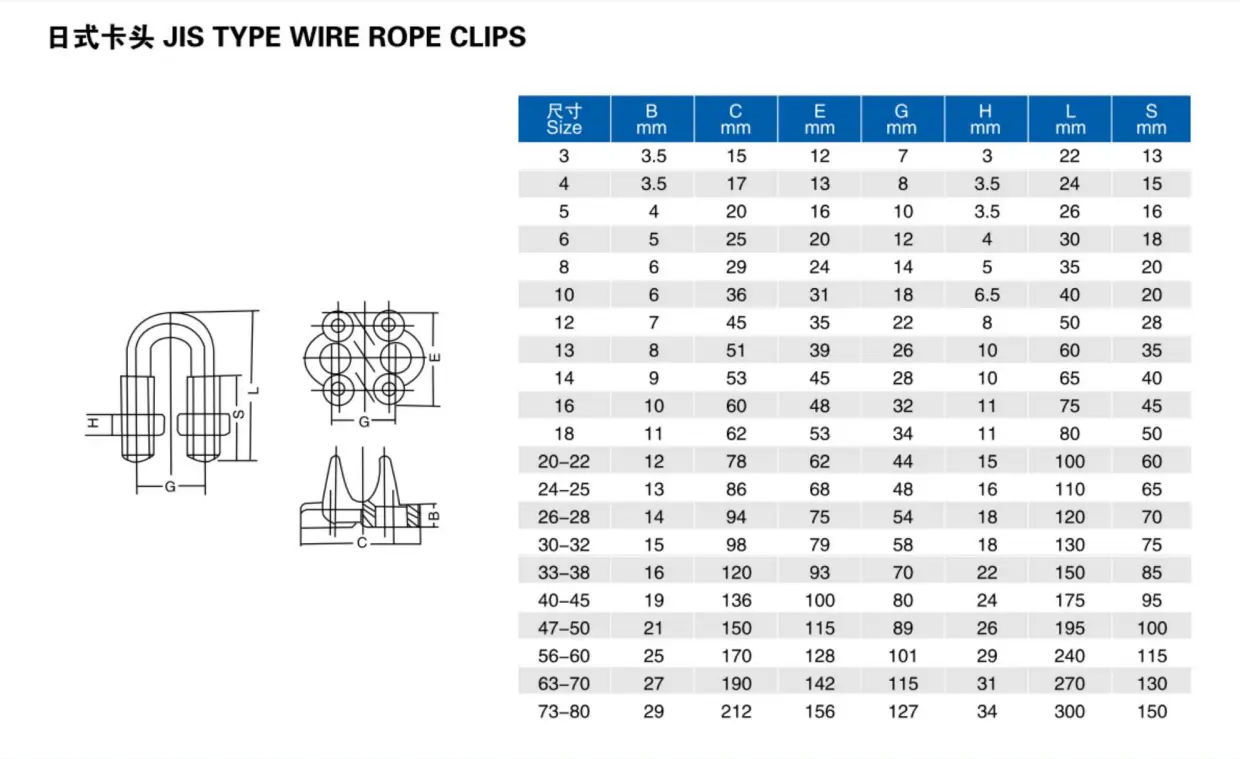

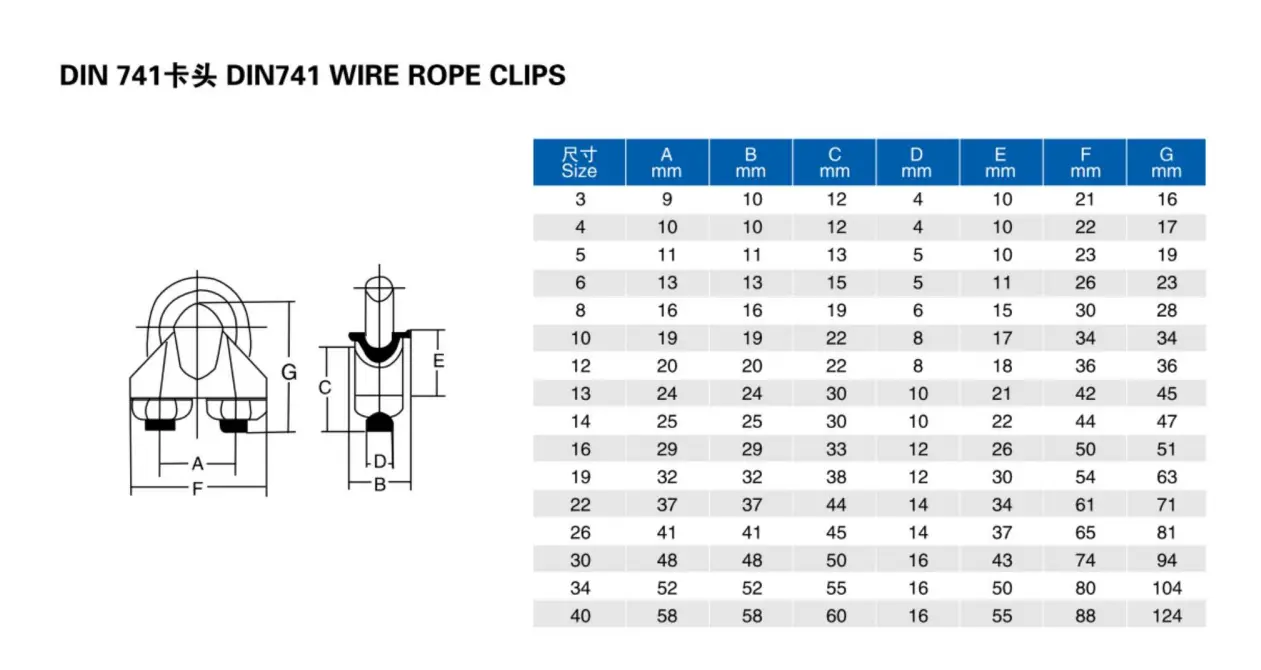

Size Selection: The inner clearance of the U-shaped ring should be 1-3 mm larger than the wire rope diameter. Incorrect sizing can lead to insecure connections and potential accidents.
✔️
Bolt Tightening: Tighten bolts until the rope is flattened by 1/3 to 1/4 of its diameter. After the rope is initially stressed, the bolts must be retightened to maintain joint integrity.
✔️

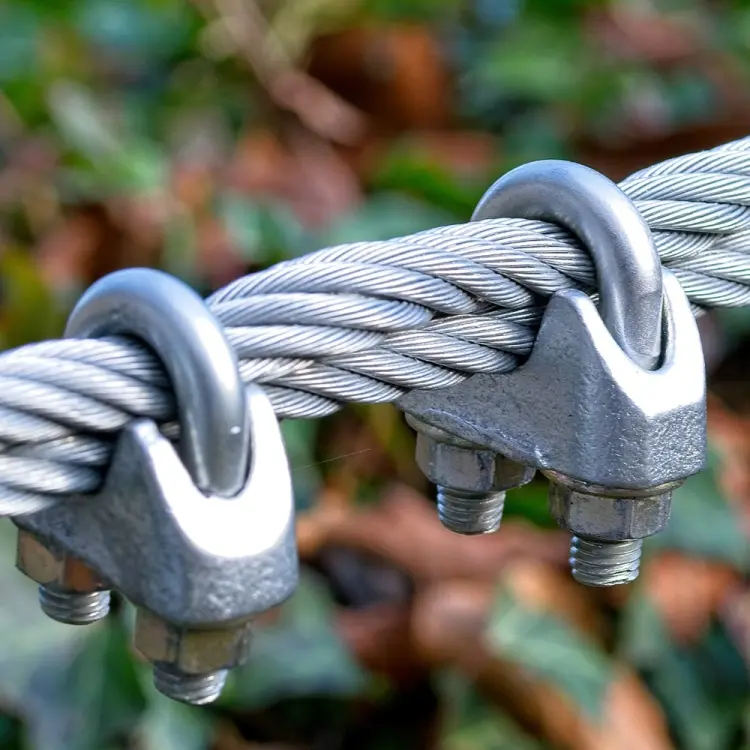

U-Shape Orientation: Arrange chucks in a straight line with the U-shaped portion contacting the "dead" rope end. It should never contact the main "live" rope, as this can cause flattening and breakage under stress.
✔️
Safety Inspection: Install an additional chuck approximately 500mm behind the last connection and create a "safety bend." This provides a visual indicator if the rope begins to slip.
Industrial Applications
Port & Engineering Cranes
Metallurgical Equipment
Oilfield Derricks
Railway Loading
Forestry Machinery
Power Equipment
Marine Transportation
Engineering Rescue
Shipwreck Salvage
Mining Cranes
Frequently Asked Questions
What are wire rope chucks used for?
They are primarily used for temporary wire rope connections, securing ropes in pulley blocks, and fixing guy ropes on jib cranes.
Which type of wire rope clamp is the strongest?
The saddle-type (also known as the U-bolt clamp with a forged base) provides the highest connection strength and is the most reliable for heavy lifting.
How many chucks should be used for a connection?
The number depends on the rope diameter, but they should always be arranged in a straight line with a safety bend added for monitoring.
How much should the wire rope be compressed by the chuck?
The bolts should be tightened until the wire rope is flattened by approximately 1/3 to 1/4 of its original diameter.
Can these be used with stainless steel wire ropes?
Yes, wire rope chucks are compatible with stainless steel, galvanized, and phosphate-coated wire ropes.
What is a "safety bend"?
A safety bend is an extra loop or bend created after the last chuck to allow operators to visually detect if the main joint has slipped.
