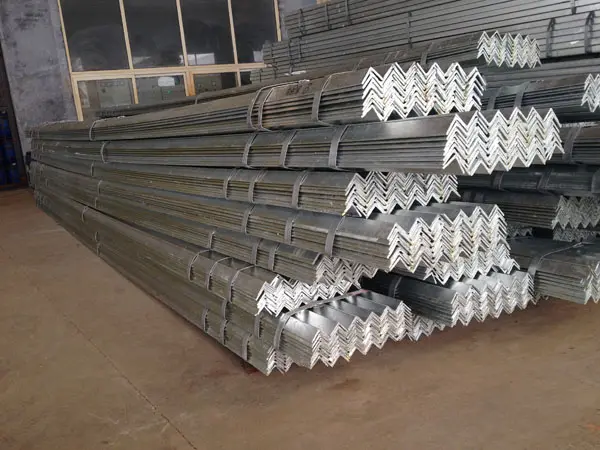

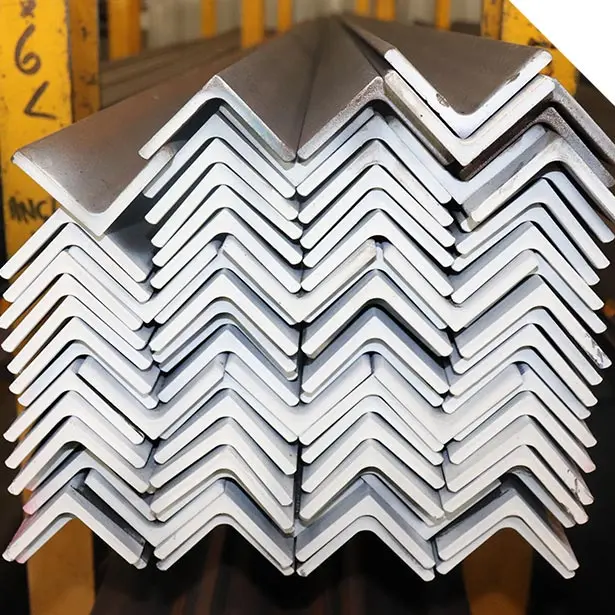

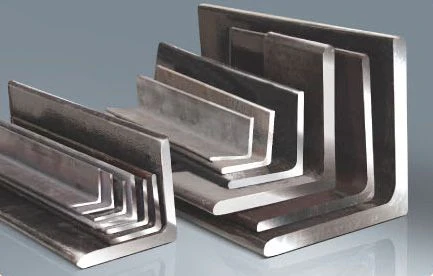

Stainless steel angle steel generally refers to long strips of steel with stainless steel material and two sides at right angles. According to the length of the strip, it is divided into equilateral stainless steel angle steel and unequal stainless steel angle steel.
Equilateral stainless steel angle steel has two sides of equal width. Common stainless steel materials for manufacturing include martensitic, ferritic, duplex, austenitic, and precipitation hardening stainless steel.
It is widely used in various building structures and engineering structures, from civil beams, warehouse shelves, equipment rack bases, to industrial bridges, transmission towers, lifting and transportation machinery, and even military ships, industrial furnaces, reaction towers, and container racks.
Stainless steel angle steel is a carbon structural steel used for construction, requiring good weldability, plastic deformation performance, and certain mechanical strength during use. The finished product is delivered in hot-rolled, normalized, or hot-rolled state.
| 25*25*3 | 75*75*6 | 125*125*12 | 32*20*4 | 75*50*8 | 110*70*8 |
| 25*25*4 | 75*75*7 | 125*125*14 | 40*25*3 | 75*50*10 | 110*70*10 |
| 30*30*3 | 75*75*8 | 140*140*10 | 40*25*4 | 80*50*5 | 125*80*7 |
| 30*30*4 | 75*75*10 | 140*140*12 | 45*28*3 | 80*50*6 | 125*80*8 |
| 40*40*3 | 80*80*6 | 140*104*14 | 45*28*4 | 80*50*7 | 125*80*10 |
| 40*40*4 | 80*80*8 | 160*160*12 | 50*32*3 | 80*50*8 | 125*80*12 |
| 40*40*5 | 80*80*10 | 160*160*14 | 50*32*4 | 90*50*5 | 140*90*8 |
| 50*50*4 | 90*90*8 | 160*160*16 | 56*36*3 | 90*50*6 | 140*90*10 |
| 50*50*5 | 90*90*10 | 160*160*18 | 56*36*4 | 90*50*7 | 140*90*12 |
| 50*50*6 | 90*90*12 | 180*180*12 | 56*36*5 | 90*50*8 | 140*90*14 |
| Standard | ASTM A276, A484, A479, A580, A582, JIS G4303, DIN 17440, GB/T 1220 |
| Material | 201, 304, 304L, 310S, 316, 316L, 321, 410, 420, 430, 2205, 904L |
| Surface | Annealed pickled, sand blast, bright, hairline, mirror |
| Technology | Hot Rolled, Welded, Bend |
| Specifications | 20*20*3mm - 100*100*10mm or as required |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | X5CrNiMo17-12-2 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | X2CrNiMo17-12-2 |
| Grade | C (max) | Mn (max) | Si (max) | Cr | Mo | Ni |
| SS 316 | 0.08 | 2.0 | 1.0 | 16.0-18.0 | 2.0-3.0 | 11.0-14.0 |
| SS 316L | 0.035 | 2.0 | 1.0 | 16.0-18.0 | 2.0-3.0 | 10.0-14.0 |
| Density | Melting Point | Tensile Strength | Yield Strength | Elongation |
| 8.0 g/cm3 | 1400 °C | 515 MPa | 205 MPa | 35% |
